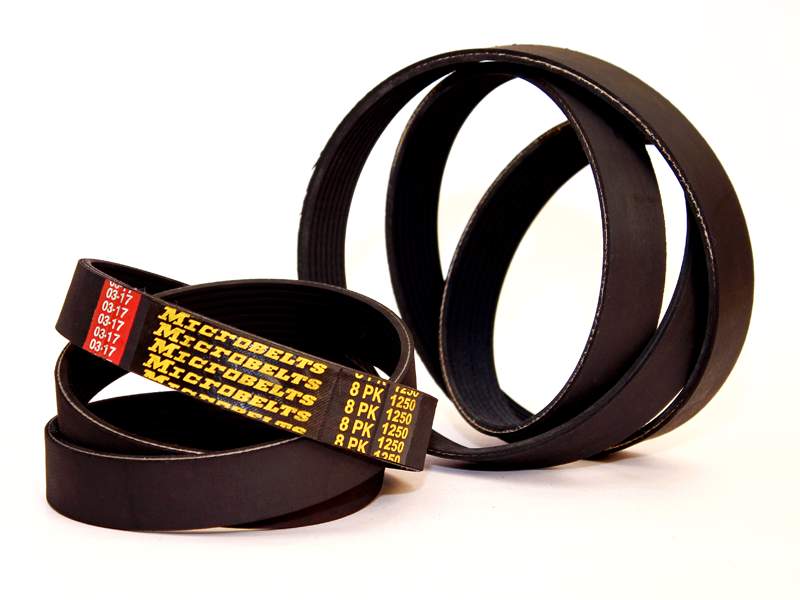

POLY BELTS (N-Number of Ribs)
Section   PH PJ PK PL PM
Top Width (mm) "t" 1.6 2.34 3.56 4.70 9.40
Thickness (mm) "H" 2.6 3.6 4.8 7.6 13.3
Angle Degree 40 40 40 40 40
  (mm) 450-2500 450-2500 450-5080 450-5080 450-5080

  • Even distribution of the working load throughout the complete belt width.
  • Compact smooth running drive system with low vibration.
  • Small pulley diameters can be used in combination with inside or outside idlers.
  • Oil resistant & antistatic
  • High power transmission capacity
